Hermle 1050-020 NB Triple Chime Replacement Clock Movement
Movement Warranty & Returns
Hermle & Urgos Limited Movement Warranty
Year 1: Defective movement will be replaced. A prepaid return shipping label will be provided.
Year 2: Defective movement will be repaired. A prepaid return shipping label will be provided.
Year 3: Defective movement will be repaired. Return shipping to the warranty facility is the customer's responsibility.
Warranty coverage is limited to repair or replacement of the movement or defective part.
Movements that have been permanently marked or scratched may be treated as repairs rather than warranty replacements.
Return all components originally supplied with the movement. Charges may apply for missing parts.
Remove the pendulum leader before packing to prevent scratching the movement plates. Fully rewind cables where applicable.
Pack the movement securely in its original packaging or equivalent protective packaging. Movements damaged because of improper return packaging may not receive warranty credit.
Please contact Just A Clock Collector before returning a movement. We will assist with the warranty claim and required return authorization. Do not ship a movement back without authorization.

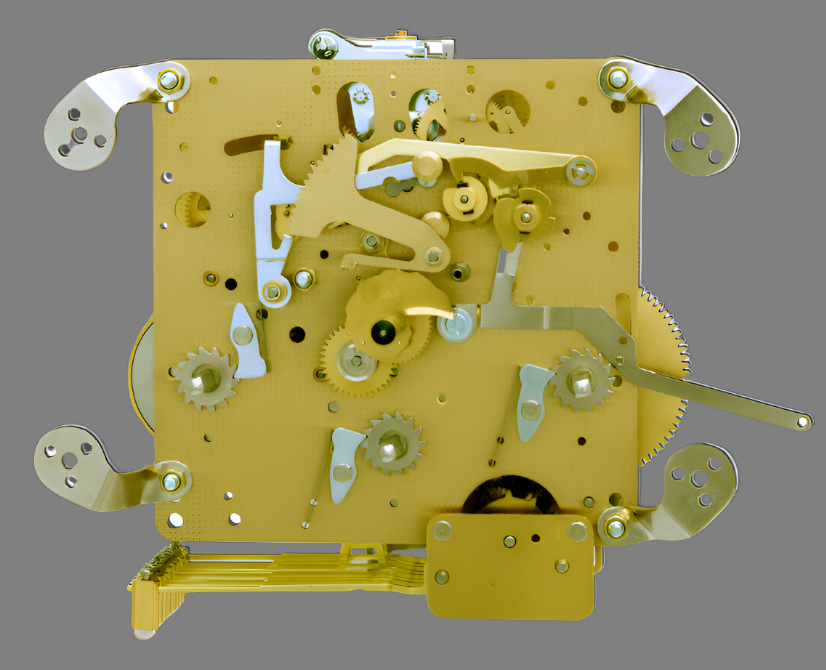

The Hermle 1050-020 NB is a factory-new, eight-day mechanical replacement movement for wall and mantel clocks. This spring-driven movement uses a balance escapement, so it does not require a pendulum, and offers three selectable chime melodies: Westminster, Whittington, and St. Michael.
Features
-
Hermle model 1050-020 NB
-
Non-bushed pivot-hole version
-
Eight-day, spring-driven mechanical movement
-
Triple chime: Westminster, Whittington, and St. Michael
-
Quarter-hour chime and hour strike
-
Balance escapement—no pendulum required
-
Eight bottom-mounted hammers
-
33.2 mm hand-shaft length
-
Plate dimensions: 120 × 120 mm
-
Front mounting
-
Factory oiled and ready for installation
-
Made in Germany
-
Three-year Hermle manufacturer warranty
Replacement Compatibility
The Hermle 1050-020 NB may replace certain movements previously marked with the following numbers:
-
Seth Thomas A305-002
-
Seth Thomas A305-004
-
Seth Thomas A403-002
-
Seth Thomas A450-012
-
Seth Thomas A502-002
-
Mason & Sullivan 3602X
-
Mason & Sullivan 3603X
The movement number alone does not guarantee compatibility. Before ordering, please verify the complete model number, hand-shaft length, hammer location, mounting arrangement, and other measurements against your existing movement.
This movement ships factory-new directly from Hermle. If you need assistance identifying your movement, please contact me with a clear photograph of the numbers stamped on the back plate.
What “NB” Means
NB means Non-Bushed. In a non-bushed movement, the wheel pivots run directly in the movement plates rather than in separate replaceable bushings. It is designed to replace the standard version of the same matching model number and configuration, and with proper care it can still provide decades of dependable use.
