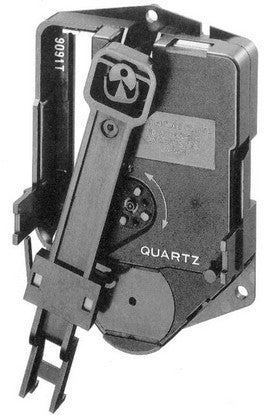

Seiko SQM501 Pendulum Quartz Clock Movement – 5/8in Hand Shaft
COLLECTOR at checkout to save
Compact Seiko time-only quartz movement with a pendulum arm and step-second motion.
Need help choosing the right quartz movement? Send photos for help checking the fit before ordering. Show the old movement, its labels, the hand shaft, and the hand fittings. If known, include the dial thickness and the total and threaded shaft lengths. Tell us whether you need pendulum or chime functions.
- Uses one AA battery (not included)
- Pendulum capable up to 17in long and 45g
- Includes brass mounting hardware
| Hand shaft length | 5/8in |
|---|---|
| Threaded portion | 5/16in |
| Movement size | 2 3/16in W × 3 3/16in H × 15/16in D |
| Battery | 1 × AA |
| Hand shaft type | I-shaft |
| Second hand motion | Step |
Part number: SQM501
